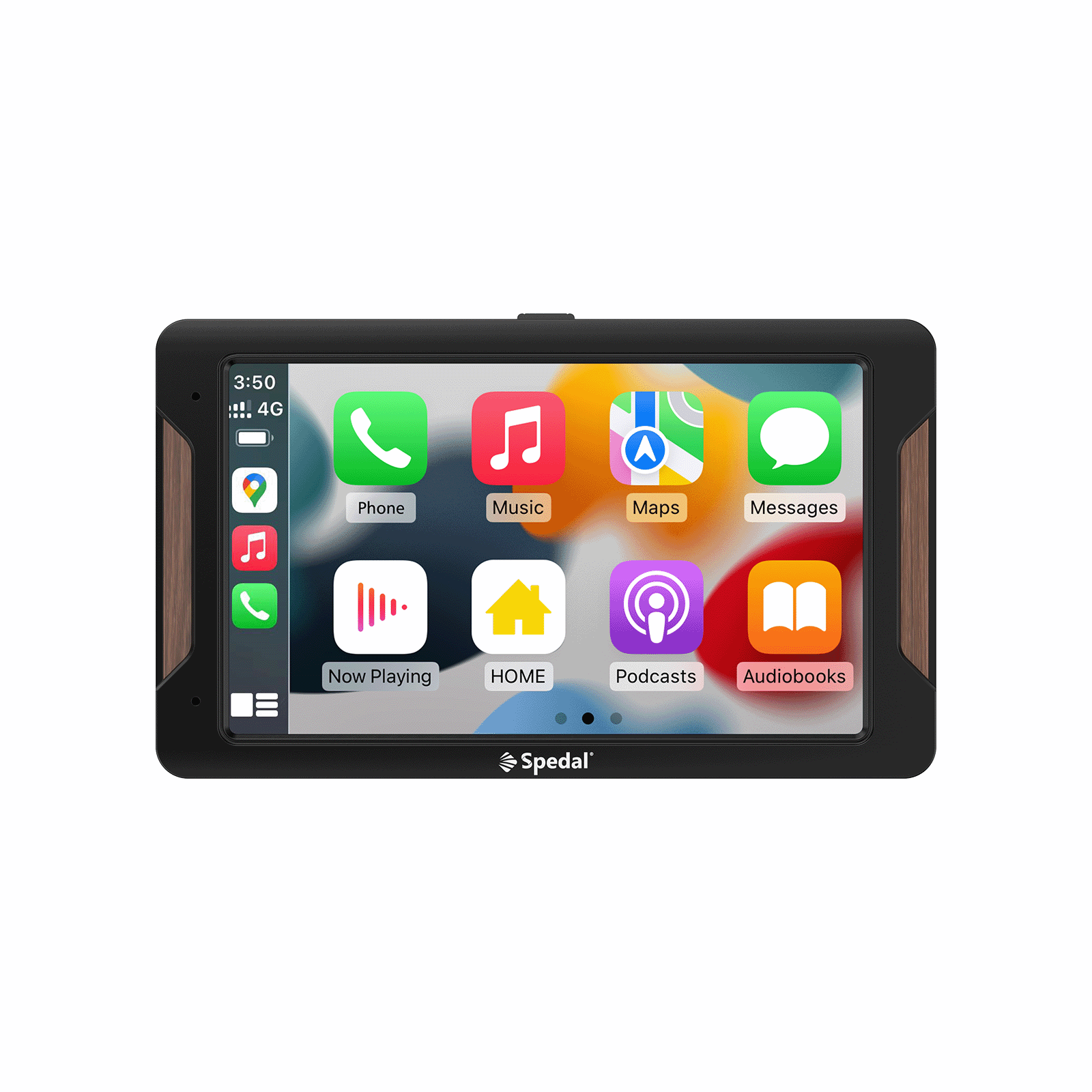

CL787 Smart Car Connectivity System | Wireless Dual-Link | 7-Inch HD | Four-Dimensional Sound

Main Features

🚀 Full Protocol Wireless Connectivity: Natively supports wireless CarPlay/Android Auto | Seamless mobile-to-car integration
🚀 Cinematic Audio-Visual Experience: 7-inch IPS wide-angle screen | 1280×720 HD resolution | Supports 4 audio output modes
🚀 Smart Driving System: Real-time dynamic navigation (supports mainstream map apps) | Smart voice dual control (Siri + Google Assistant)
Advantages

✅ Military-grade reliability | Operating temperature range: -20°C ~ 65°C
✅ Simple interaction design | Multi-touch control
✅ All-in-one entertainment hub | Mobile/local dual-source playback
Helpful Tips

📌 Wireless CarPlay requires iOS 11+; Android Auto requires Android 12+

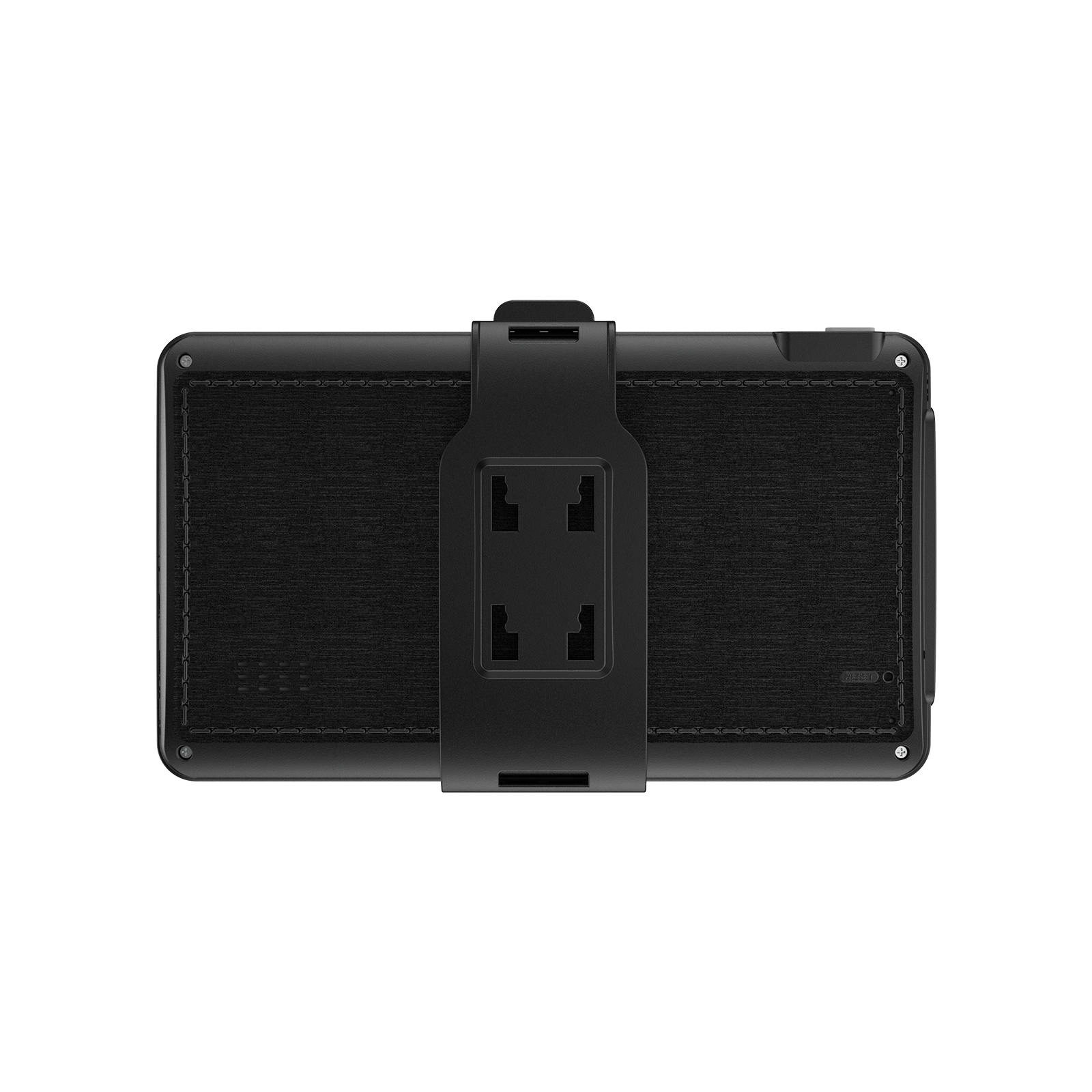

📌 Use both 3M adhesive and suction mount for secure installation
📌 Wireless connection distance recommended ≤ 3 meters
Specifications
Dimensions & Weight
Dimensions: 187 × 110 × 12 mm
Weight: 253g
Technical Specifications
Display & Imaging
Screen: 7-inch LCD
Ports & Storage
USB Port: Type-C
Power & Environment
Input: DC 5V/3A
Operating Temperature: -20°C ~ 65°C
Storage Temperature: -20°C ~ 70°C
Package Contents
Standard Configuration
Main Unit ×1
Power Cable ×1
Suction Cup Mount ×1
Audio Cable ×1
User Manual ×1

No. Item Notes Version Size Format File
1 Firmware (English) For Windows System 20241206 169.19MB .rar
2 Firmware (Japanese) For Windows System 20241206 167.6MB .rar
3 User Manual (English) - 028C4C10 6.16MB .pdf
4 User Manual (German) - 028C4C10 6.16MB .pdf
5 User Manual (Spanish) - 028C4C10 6.2MB .pdf
6 User Manual (French) - 028C4C10 6.2MB .pdf
7 User Manual (Italian) - 028C4C10 6.2MB .pdf
8 User Manual (Japanese) - 028C4C10 6.13MB .pdf
If you encounter any issues, please contact us via email at support@spedaltech.com.
