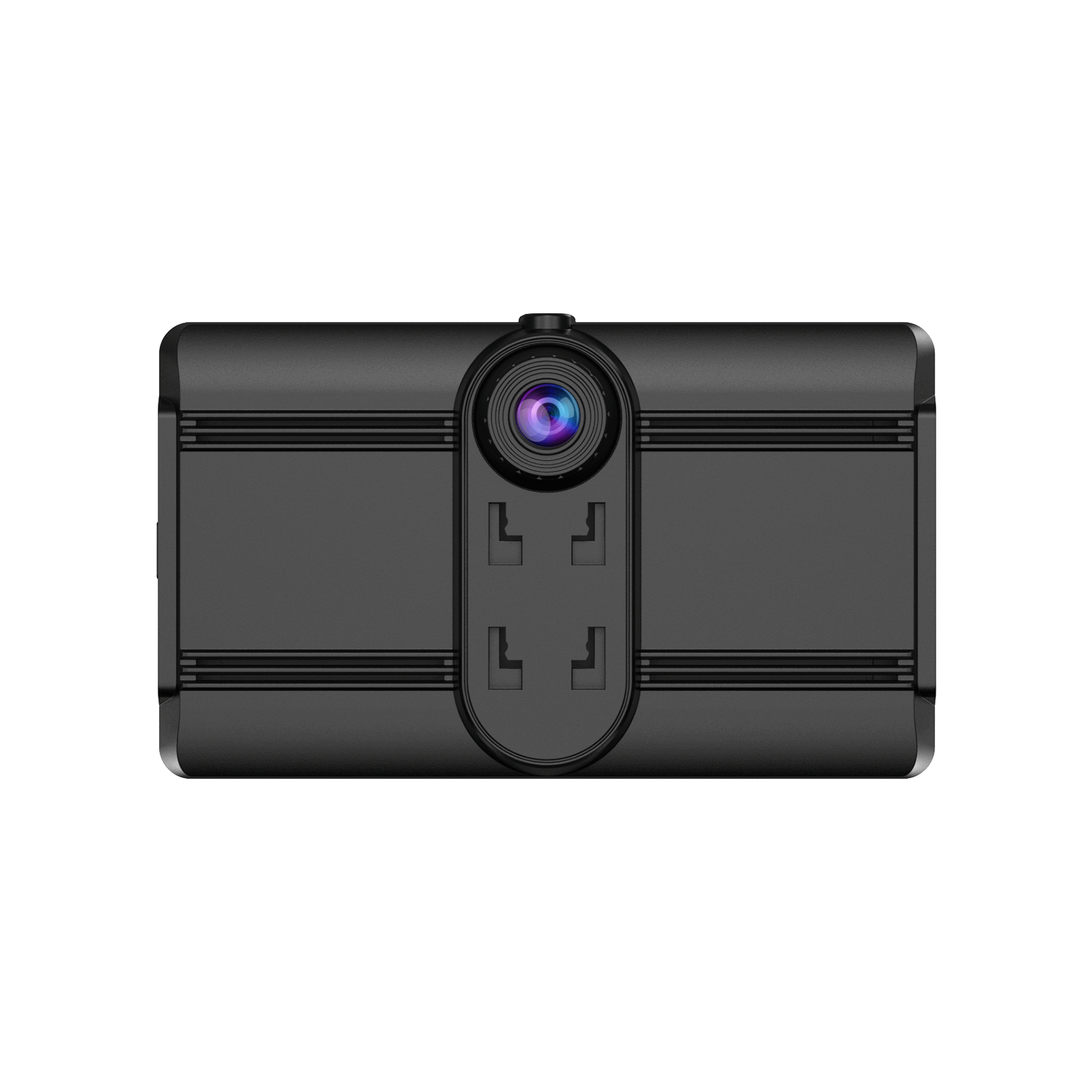

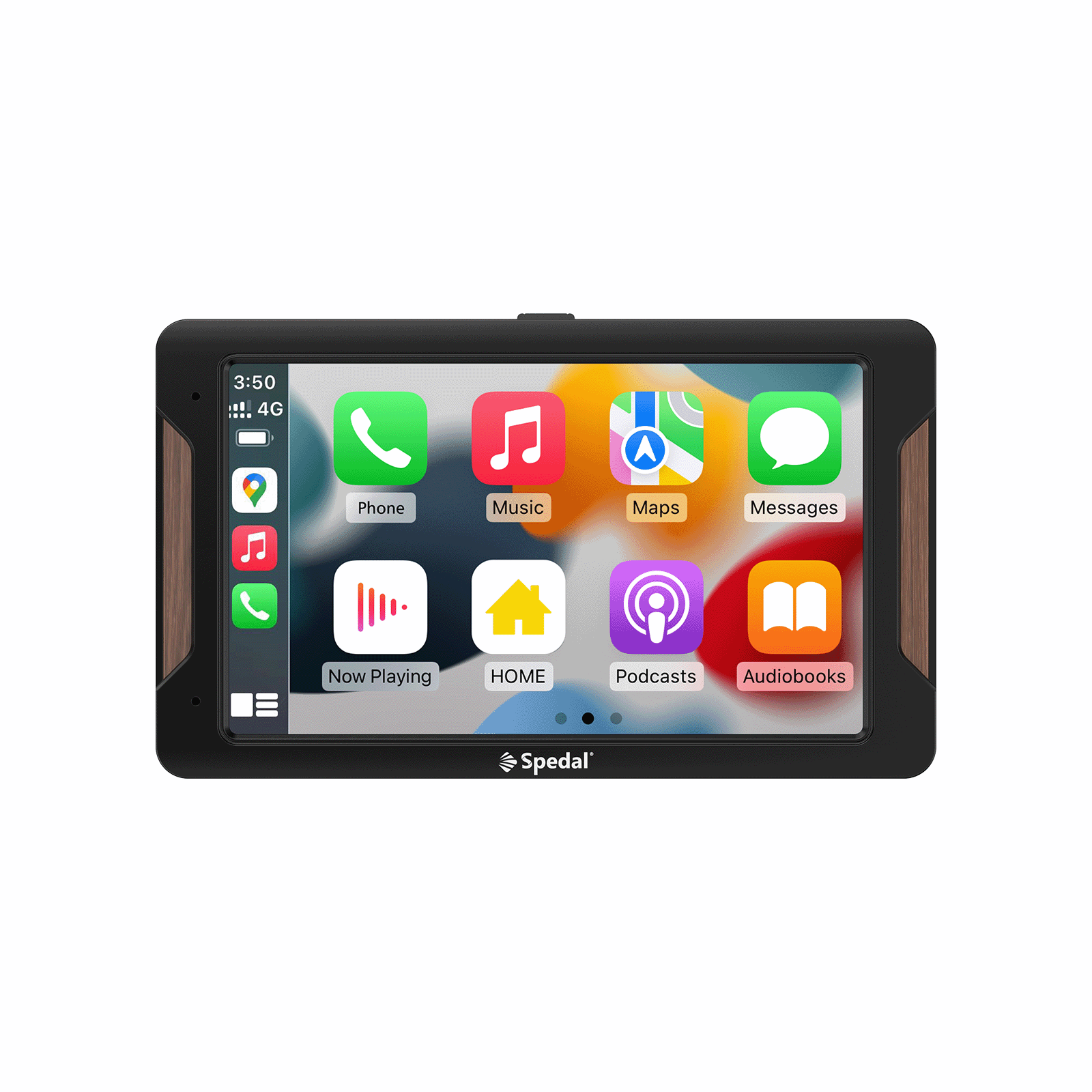

CL796T Smart Car Navigation | Wired Connectivity | 7-inch IPS Screen | Compatible with All Vehicles
Main Features
đ Wired CarPlay/Android Auto | Supports Navigation/Calls/Music | Voice Control
đ 1080P Camera | 140° Wide Angle
đ 7-inch IPS Touchscreen | Real-Time Mobile Navigation | Supports Multiple Navigation Apps
đ Triple Audio Outputs | Built-In Speakers/AUX/FM Transmitter
đ Multifunctional All-in-One | Navigation + Dash Cam + Multimedia + Calls
Advantages
â Plug and Play Design | Compatible with 12-48V Vehicles
â Stable Wired Connection | Solves Wireless Latency Issues
â Multifunctional Integration | Meets All Driving Needs
Helpful Tips
đ Automatically switches to rearview when reversing
đ Regularly check camera cleanliness
Specifications
Dimensions & Weight
Dimensions: 188 Ã 108 Ã 40 mm
Weight: 330g
Weight: 330g
Technical Specifications
Display & Imaging
Screen: 7-inch LCD
Aperture: F1.8
Resolution: 1080P
Field of View: 140°
Aperture: F1.8
Resolution: 1080P
Field of View: 140°
Ports & Storage
USB Port: Type-C
Video Format: TS
Photo Format: JPEG
Storage: TF card (max 128GB)
Video Format: TS
Photo Format: JPEG
Storage: TF card (max 128GB)
Power & Environment
Input: DC 5V/3A
Operating Temperature: -20°C ~ 65°C
Storage Temperature: -20°C ~ 70°C
Operating Temperature: -20°C ~ 65°C
Storage Temperature: -20°C ~ 70°C
Package Contents
Standard Configuration
Main Unit Ã1
Power Cable Ã1
Base Mount Ã1
Suction Cup Mount Ã1
Reverse Camera Ã1
Camera Extension Cable (6.5m) Ã1
Camera Extension Cable (12.5m) Ã1
Audio Cable Ã1
USB-C to Lightning Data Cable Ã1
USB-C to USB-C Data Cable Ã1
Installation Kit Ã1
User Manual Ã1
Power Cable Ã1
Base Mount Ã1
Suction Cup Mount Ã1
Reverse Camera Ã1
Camera Extension Cable (6.5m) Ã1
Camera Extension Cable (12.5m) Ã1
Audio Cable Ã1
USB-C to Lightning Data Cable Ã1
USB-C to USB-C Data Cable Ã1
Installation Kit Ã1
User Manual Ã1
Optional Accessories
TF Card
| No. | Item | Notes | Version | Size | Format | File |
|---|---|---|---|---|---|---|
| 1 | User Manual (English) | - | 018C2717 | 372KB |
|
|
| 2 | User Manual (German) | - | 018C2810 | 411KB |
|
|
| 3 | User Manual (Spanish) | - | 018C2810 | 411KB |
|
|
| 4 | User Manual (French) | - | 018C2810 | 411KB |
|
|
| 5 | User Manual (Italian) | - | 018C2810 | 109KB |
|
|
| 6 | User Manual (Japanese) | - | 018C2815 | 389KB |
|
|
| 7 | User Manual (Simplified Chinese) | - | 018C2719 | 473KB |
|
