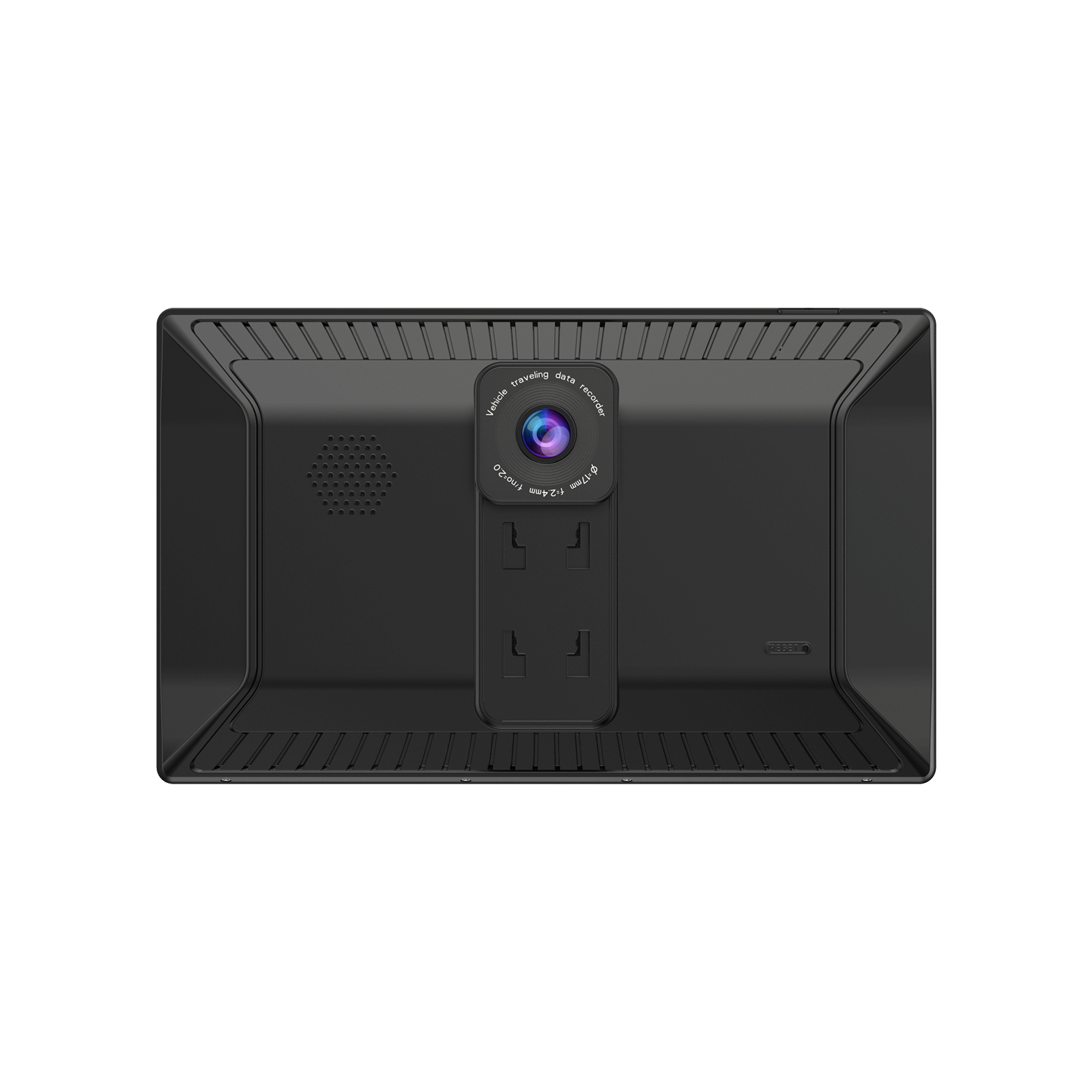

CL811 Smart In-Car Integrated System | 9-inch Dual-Camera Large Screen | Wireless Connectivity | Dash Cam
Core Features
đ Dual-System Wireless Connectivity: Apple CarPlay/Android Auto Auto-Connect
đ 9-inch IPS Fully Laminated Screen | 2K Front + 1080P Reversing Dual Cameras
đ Dash Cam Function: 140° Wide Angle | Night Vision | Large Capacity Storage Card Loop Recording
đ Smart Voice Interaction: Deep Integration with Siri | Global Voice Command Support
Usage Benefits
â Voice-Controlled Smart Features: Supports Siri/Google Assistant
â Real-time Navigation: Online Map Auto-updates (Google Maps/Waze)
â Large Screen Entertainment: Supports iOS/Android Wireless Screen Mirroring
Helpful Tips
đ iOS 17.2 Users must contact customer service for AirPlay compatibility patch
đ Regularly check for system updates for optimal experience
đ Bluetooth connection is recommended for the best sound quality
Specifications
Dimensions & Weight
Dimensions: 223 Ã 135 Ã 21 mm
Weight: 291g
Weight: 291g
Technical Specifications
Display & Imaging
Screen: 9-inch LCD
Aperture: F1.8
Resolution: 2K
Field of View: 140°
Aperture: F1.8
Resolution: 2K
Field of View: 140°
Ports & Storage
USB Port: Type-C
Video Format: TS
Photo Format: JPEG
Storage Support: TF Card (up to 128GB)
Video Format: TS
Photo Format: JPEG
Storage Support: TF Card (up to 128GB)
Power & Environment
Input: DC 5V/3A
Operating Temperature: -20â ~ 65â
Storage Temperature: -20â ~ 70â
Operating Temperature: -20â ~ 65â
Storage Temperature: -20â ~ 70â
Packaging List
Standard Configuration
Main Unit Ã1
Power Cable Ã1
Suction Cup Bracket Ã1
Audio Cable Ã1
Reversing Camera Ã1
Camera Extension Cable Ã1
USB-C to USB-C Data Cable Ã1
User Manual Ã1
Power Cable Ã1
Suction Cup Bracket Ã1
Audio Cable Ã1
Reversing Camera Ã1
Camera Extension Cable Ã1
USB-C to USB-C Data Cable Ã1
User Manual Ã1
Optional Accessories
In-Car Camera Ã1
TF Card
TF Card
| No. | Item | Remarks | Version | Size | Format | File |
|---|---|---|---|---|---|---|
| 1 | Firmware | For Windows | 20240109 | 360.28MB | .rar |
|
| 2 | User Manual (English) | - | 039C3C09 | 2.4MB |
|
|
| 3 | User Manual (German) | - | 039C3C12 | 2.52MB |
|
|
| 4 | User Manual (Spanish) | - | 039C3C12 | 2.48MB |
|
|
| 5 | User Manual (French) | - | 039C3C12 | 2.5MB |
|
|
| 6 | User Manual (Italian) | - | 039C3C12 | 2.49MB |
|
|
| 7 | User Manual (Japanese) | - | 039C3C09 | 2.62MB |
|
