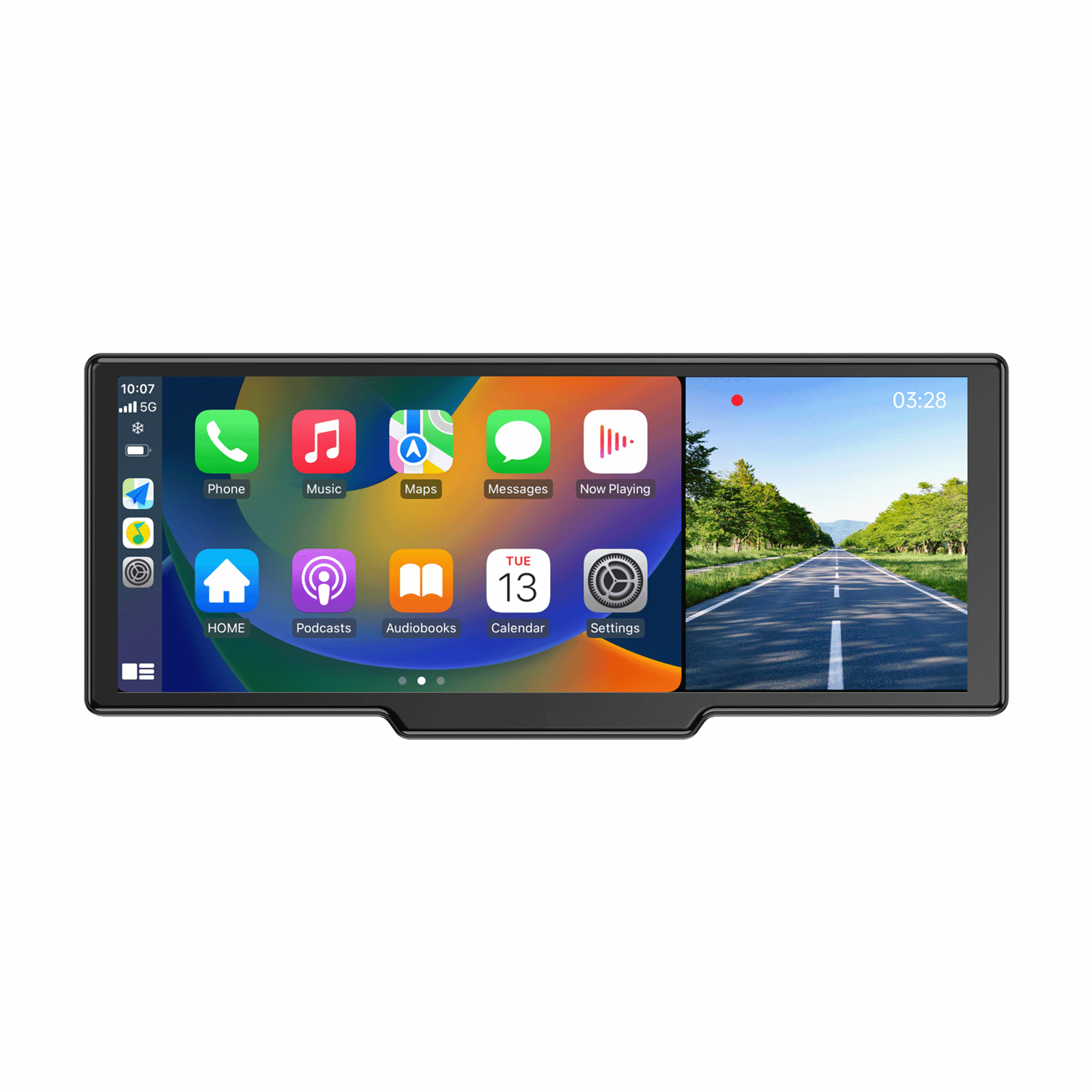

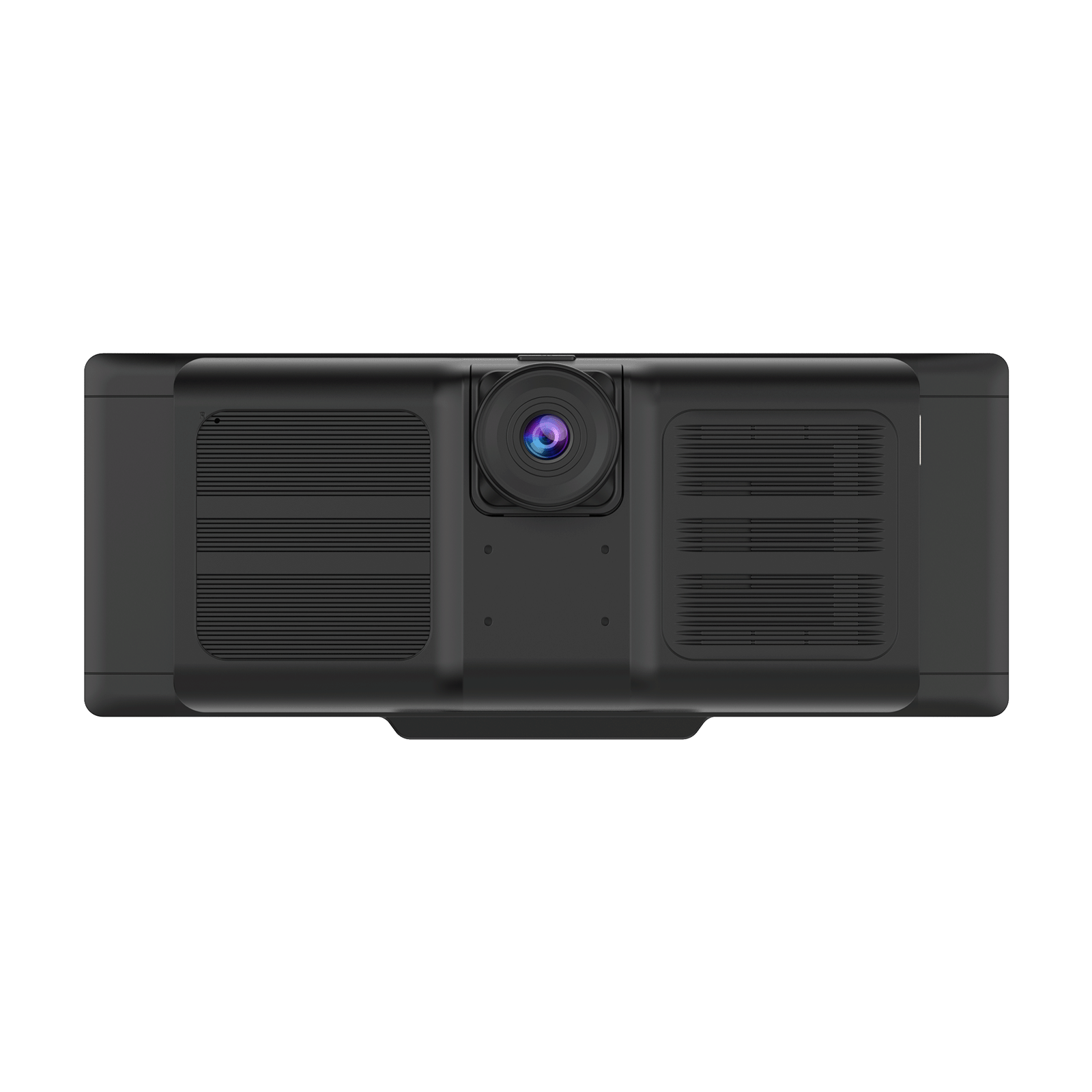

CL860 Smart In-Car Connectivity System | 9.3-inch HD Screen | Wireless Dual-System Connectivity | Front and Rear Dual-Camera Recording
Core Features
🚀 Supports Wireless CarPlay/Android Auto | Plug-and-play Wired Connection
🚀 9.3-inch IPS Touchscreen | 1600×600 resolution | Split-screen Display
🚀 4K Front + 1080P Rear Dual Cameras | Loop Recording
🚀 Supports AirPlay/Miracast Wireless Screen Mirroring
Usage Benefits
✅ Fully Compatible with All Vehicle Models | 12-48V Wide Voltage | Suitable for Cars/SUVs/Pickups
✅ Intelligent Dual-System Connectivity | Wireless Connection for More Convenience | No More Data Cable Hassles
✅ 9.3-inch IPS Large Screen | Real-time Navigation | Sensitive Touchscreen
Friendly Reminders
📌 Avoid operating complex entertainment functions while driving
📌 Regularly check for system updates for the best experience
📌 Regularly format the TF card to ensure stable video recording
Specifications
Dimensions & Weight
Dimensions: 240 × 105 × 68 mm
Weight: 547g
Weight: 547g
Technical Specifications
Display & Imaging
Screen: 9.3-inch LCD
Aperture: F1.8
Resolution: 2K, 4K
Field of View: 140°
Aperture: F1.8
Resolution: 2K, 4K
Field of View: 140°
Ports & Storage
USB Port: Type-C
Video Format: TS
Photo Format: JPEG
Storage Support: TF Card (up to 128GB)
Video Format: TS
Photo Format: JPEG
Storage Support: TF Card (up to 128GB)
Power & Environment
Input: DC 5V/3A
Operating Temperature: -20℃ ~ 65℃
Storage Temperature: -20℃ ~ 70℃
Operating Temperature: -20℃ ~ 65℃
Storage Temperature: -20℃ ~ 70℃
Packaging List
Standard Configuration
Main Unit ×1
Power Cable ×1
Suction Cup Bracket ×1
Adhesive Bracket ×1
Audio Cable ×1
In-Car Camera ×1
Camera Extension Cable ×1
User Manual ×1
Power Cable ×1
Suction Cup Bracket ×1
Adhesive Bracket ×1
Audio Cable ×1
In-Car Camera ×1
Camera Extension Cable ×1
User Manual ×1
Optional Accessories
TF Card
| No. | Item | Remarks | Version | Size | Format | File |
|---|---|---|---|---|---|---|
| 1 | Firmware (English) | For Windows | 20240126 | 210.2MB | .rar |
|
| 2 | Firmware (Japanese) | For Windows | 20240126 | 212.65MB | .rar |
|
| 3 | User Manual (English) | - | 027C4815 | 2.55MB |
|
|
| 4 | User Manual (Japanese) | - | 027C4815 | 2.76MB |
|
|
| 5 | User Manual (Spanish) | - | 027C4815 | 2.58MB |
|
|
| 6 | User Manual (German) | - | 027C4815 | 2.59MB |
|
|
| 7 | User Manual (French) | - | 027C4815 | 2.57MB |
|
|
| 8 | User Manual (Italian) | - | 027C4815 | 2.53MB |
|
| No. | Item | Remarks | Version | Size | Format | File |
|---|---|---|---|---|---|---|
| 1 | Firmware (English) | For Windows | 20240319 | 210.19MB | .rar |
|
| 2 | Firmware (Japanese) | For Windows | 20240126 | 213.33MB | .rar |
|
| 3 | User Manual (English) | - | 027C4815 | 2.55MB |
|
|
| 4 | User Manual (Japanese) | - | 027C4815 | 2.76MB |
|
|
| 4 | User Manual (Spanish) | - | 027C4815 | 2.58MB |
|
|
| 5 | User Manual (German) | - | 027C4815 | 2.59MB |
|
|
| 6 | User Manual (French) | - | 027C4815 | 2.57MB |
|
|
| 7 | User Manual (Italian) | - | 027C4815 | 2.53MB |
|
| No. | Item | Remarks | Version | Size | Format | File |
|---|---|---|---|---|---|---|
| 1 | Firmware (English) | For Windows | 20240319 | 210.2MB | .rar |
|
| 2 | Firmware (Japanese) | For Windows | 20240319 | 213.35MB | .rar |
|
| 3 | User Manual (English) | - | 027C4815 | 2.55MB |
|
|
| 4 | User Manual (Japanese) | - | 027C4815 | 2.76MB |
|
|
| 4 | User Manual (Spanish) | - | 027C4815 | 2.58MB |
|
|
| 5 | User Manual (German) | - | 027C4815 | 2.59MB |
|
|
| 6 | User Manual (French) | - | 027C4815 | 2.57MB |
|
|
| 7 | User Manual (Italian) | - | 027C4815 | 2.53MB |
|
